Electropathy

When electricity was new, people had high hopes that it had curative powers.  Unlike other "magical" cures, electricity could be felt.  Electropathy, very popular from 1850-1900, promised to cure most diseases and conditions including mental illness. The patient held a metal cylinder, a hand electrode, while the healer applied a second electrode to the ailing body part.   Electrode attachments were manufactured in a variety of shapes. The electrodes connected to an electrical source such as a magneto, chemical battery or battery box.

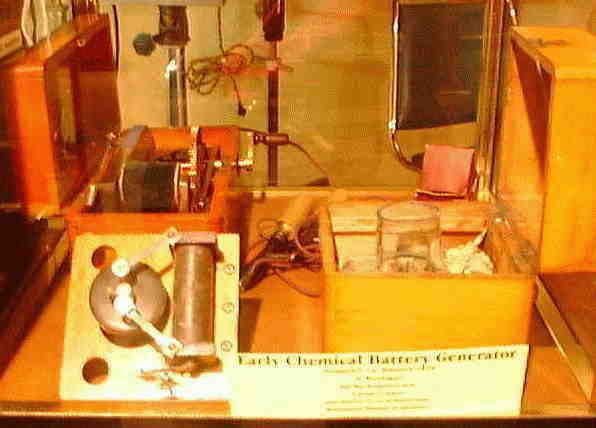

Back left:  1854 Davis Kidder Magneto, 4 3/4" x 10" x 4 7/8". Brass hand electrode shown center back. Front: Early Chemical Battery Generator.  Top, front left, 4 7/8" x 4 7/8". Case, front right, 5 3/8" x 5 3/8" x 6" [Large image, 428 x 596, 21K]Photos by B. and J. Gaukel.

Early Chemical Battery Generator

The battery was made by the Nonpareil Co. founded in 1855.  The instructions were:

Add 8 oz Sulphuric acid,
5 pints water
and disolve 7 1/2 oz of Pulverized
Bichromite Potassa in mixture.

The Davis Kidder Magneto

The Davis Kidder Magneto, patented in 1854, is a simple machine which generates electricity using a magnet.  A hand-turned crank operates gears (connected by a thin leather belt) which spin a velvet-covered armature.  This generates an electric flow conducted over cloth-insulated wires to the 2 inch brass electrodes.  The current produced is low voltage - using the machine briefly is not unpleasant. Use causes involuntary muscle contractions.
